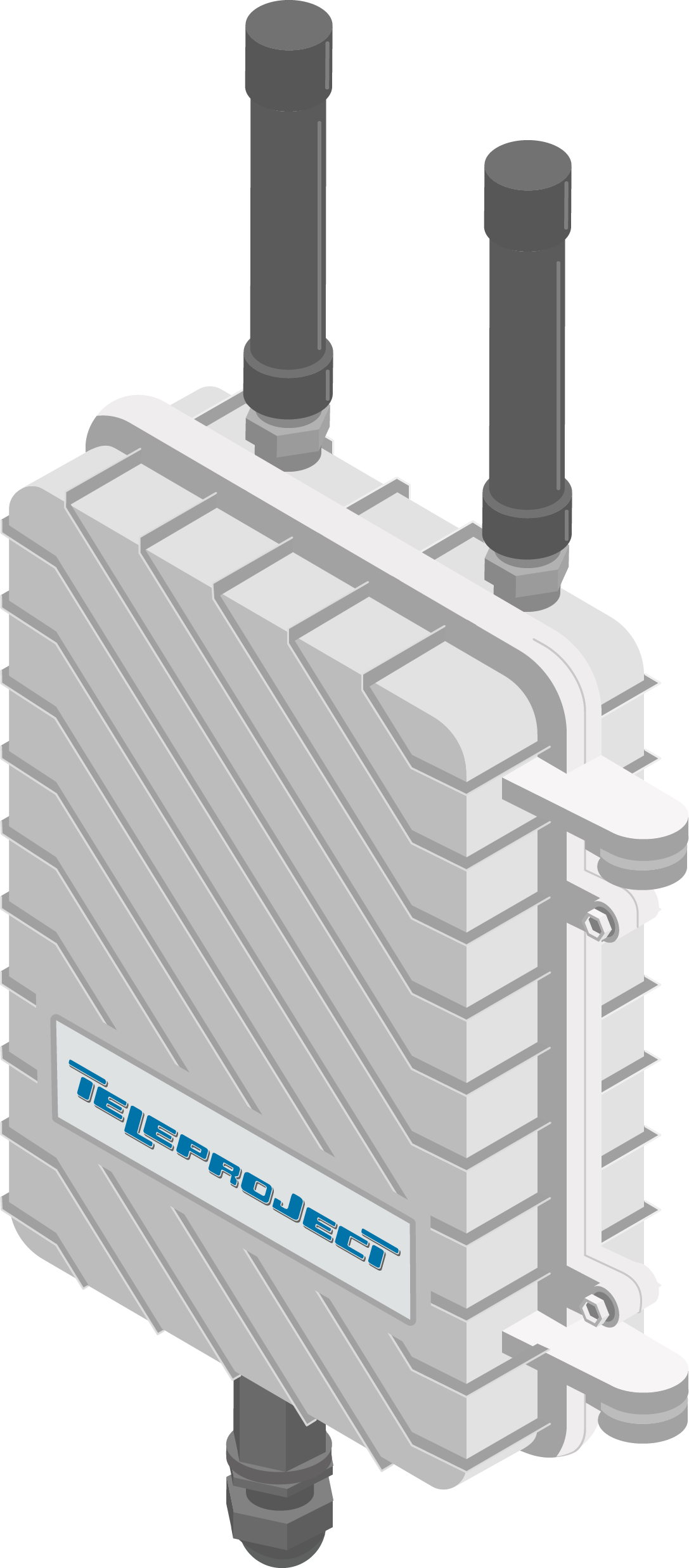

Outdoor cellular network monitoring system
TP-CELLX is a highly advanced outdoor cellular network analyzer designed for global use. It can monitor cellular bands from any operator using 2G, 3G, 4G, and 5G technology (available from Q3 2023). This powerful tool helps ensure the optimal performance and reliability of your cellular network, no matter where you are in the world.
With an ethernet connection, you can ensure that notifications are received and stay informed of the status of your network at all times. This feature helps you maintain the reliability and performance of your cellular communications system.

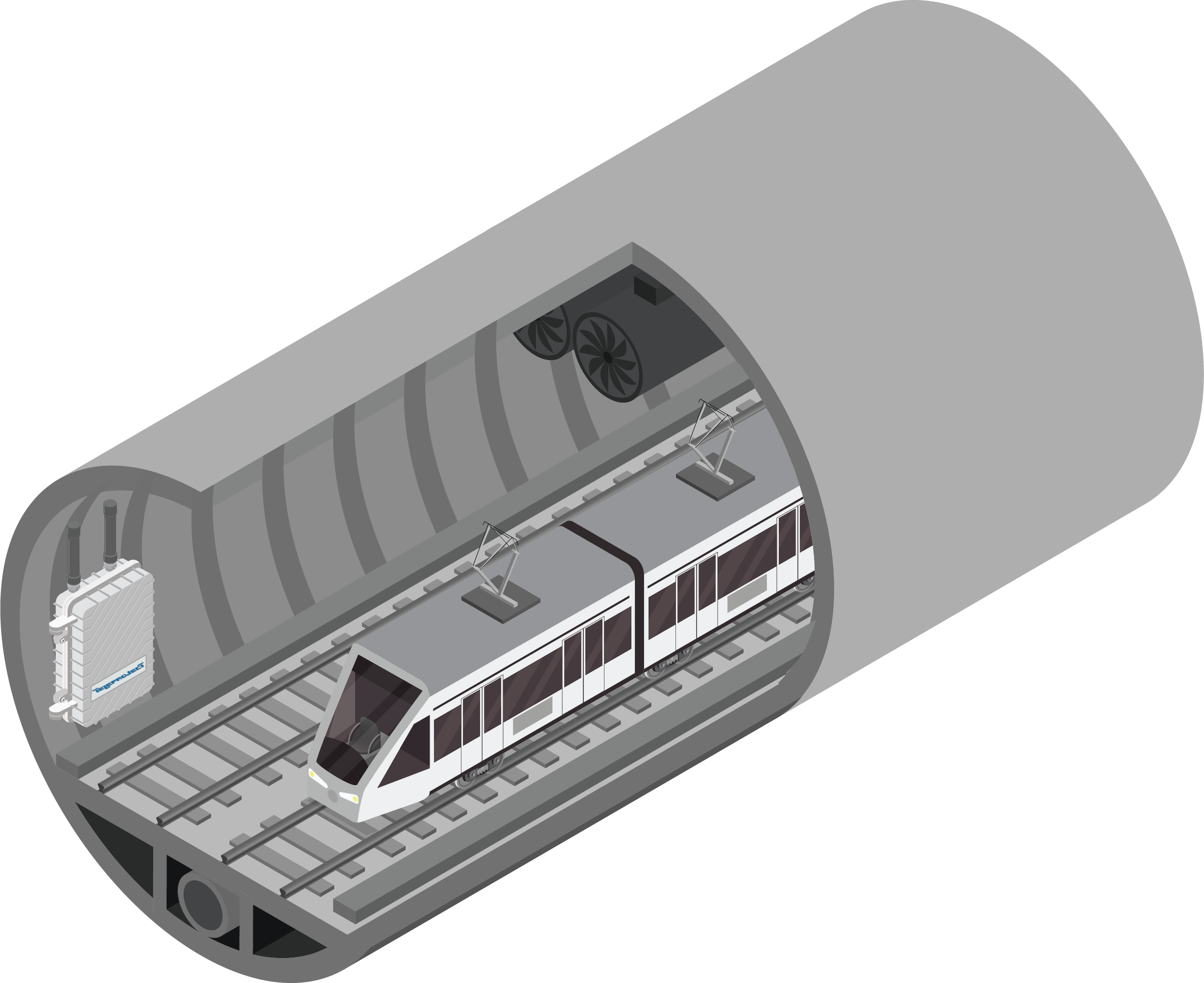

TP-CELLX can also monitor GSM-R and LTE-R railways netowkrs, if you wanto to monitor other technologies like TETRA, DMR, V2X (smart road), etc... we have developed the TP-RFX

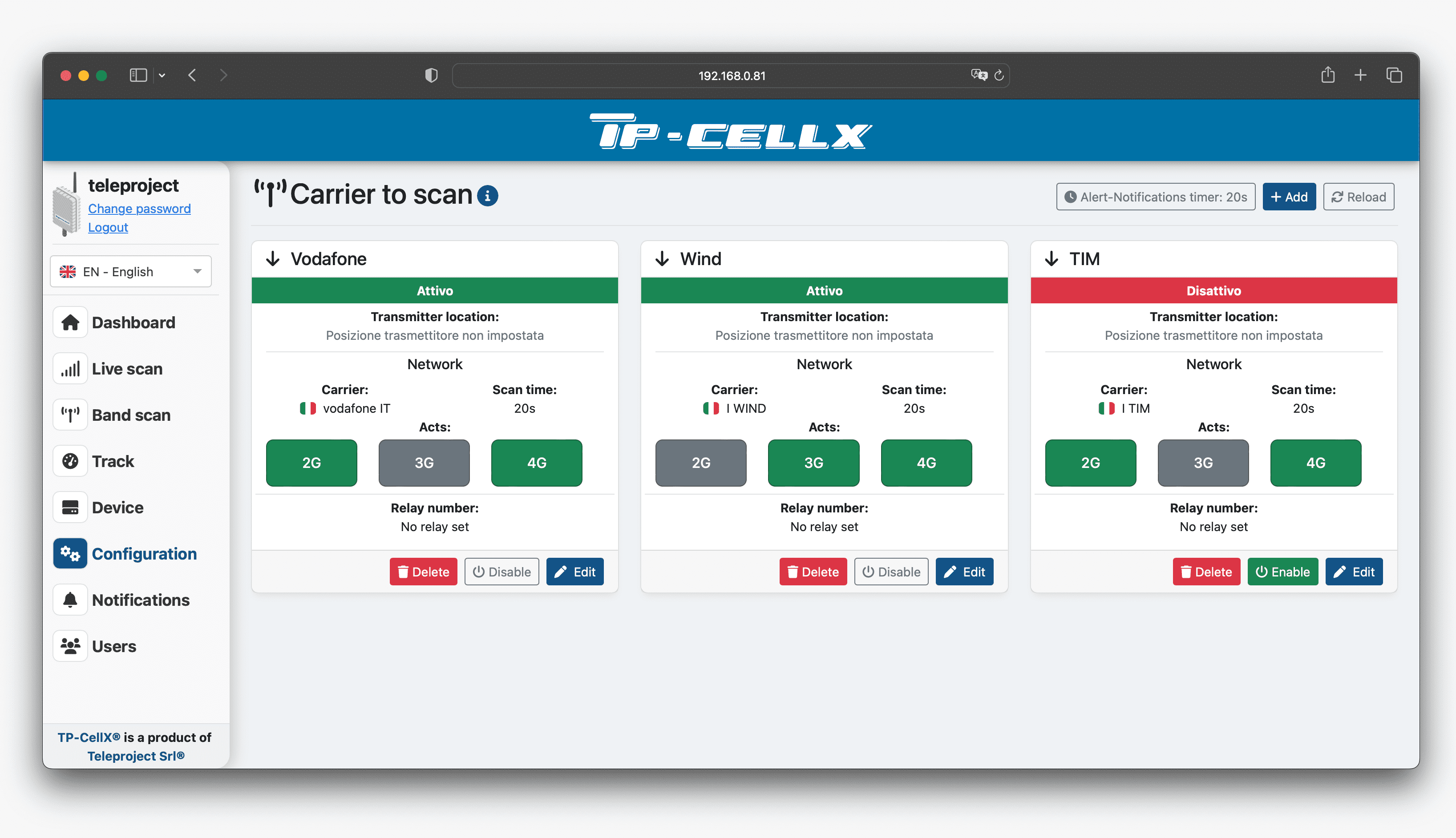

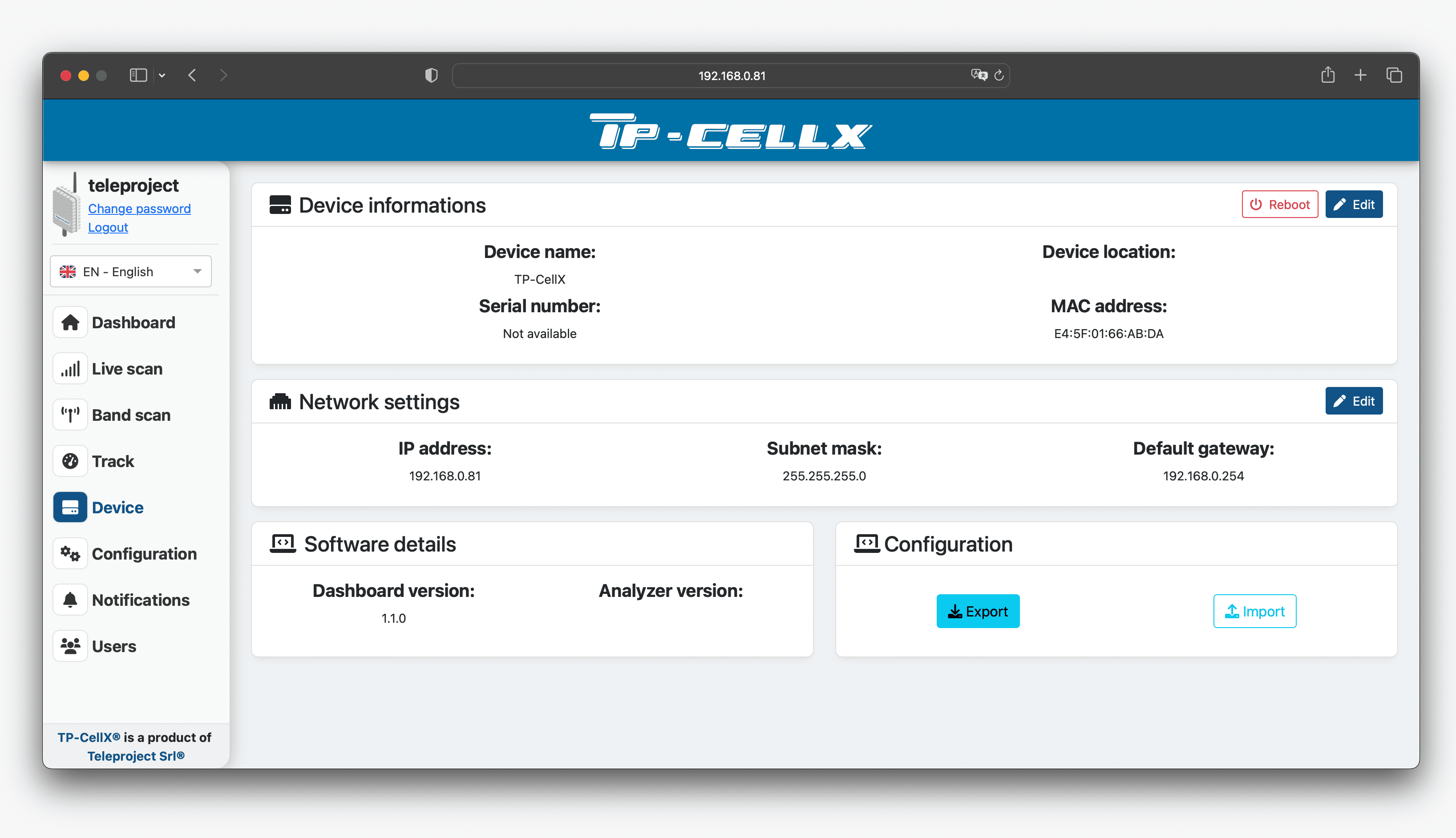

User-friendly web interface
Setup and monitor the device directly from your browser!

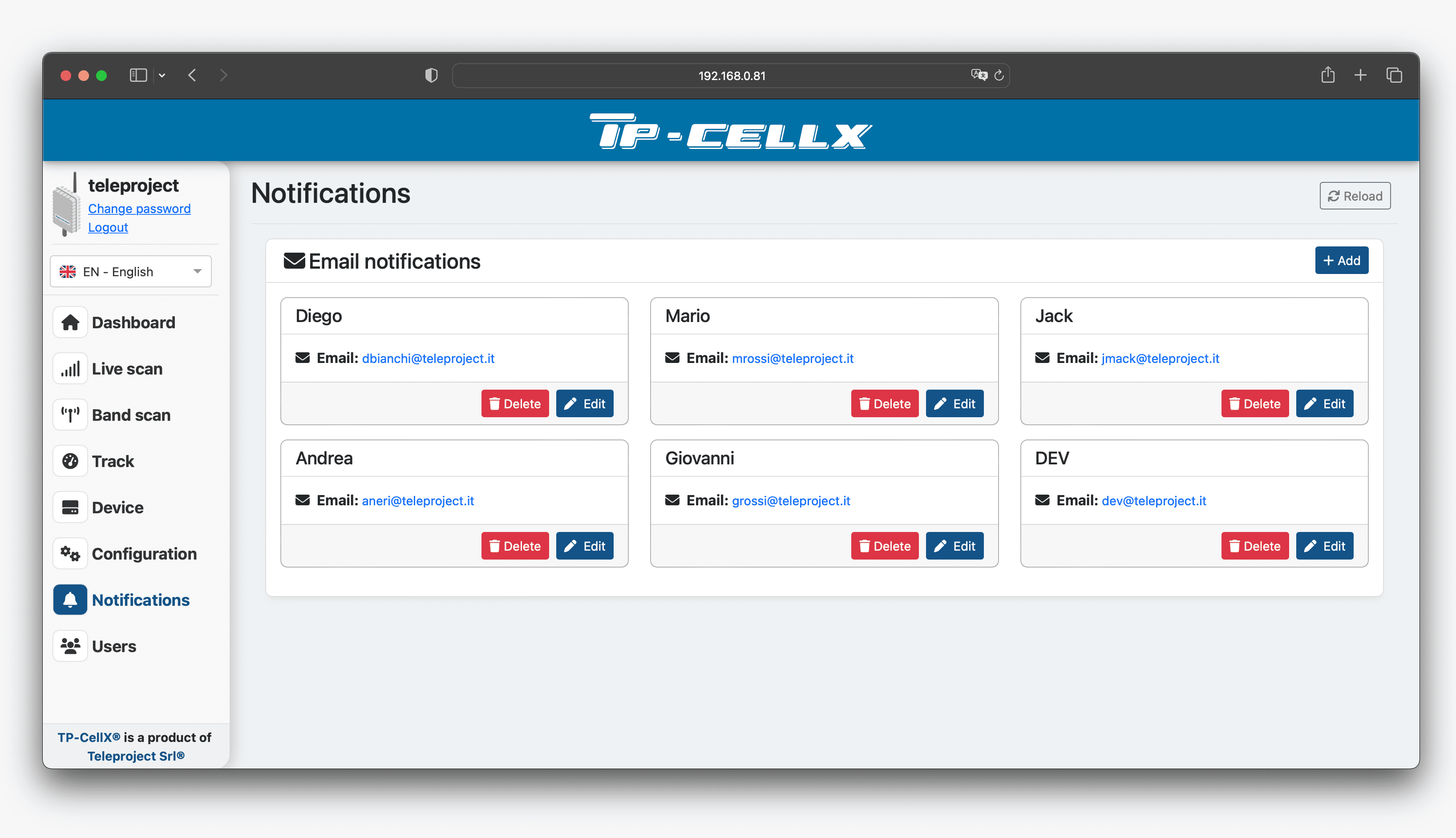

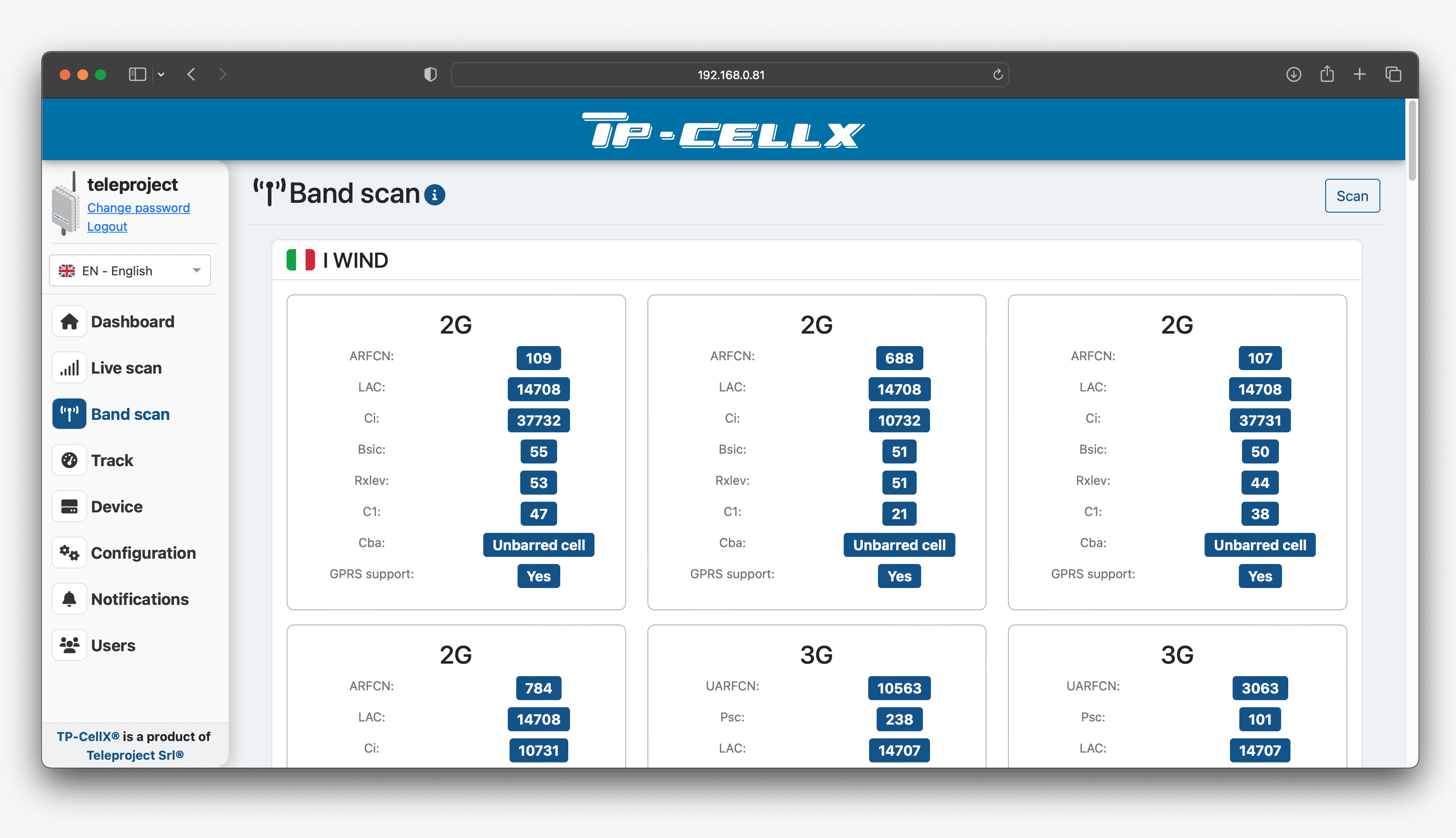

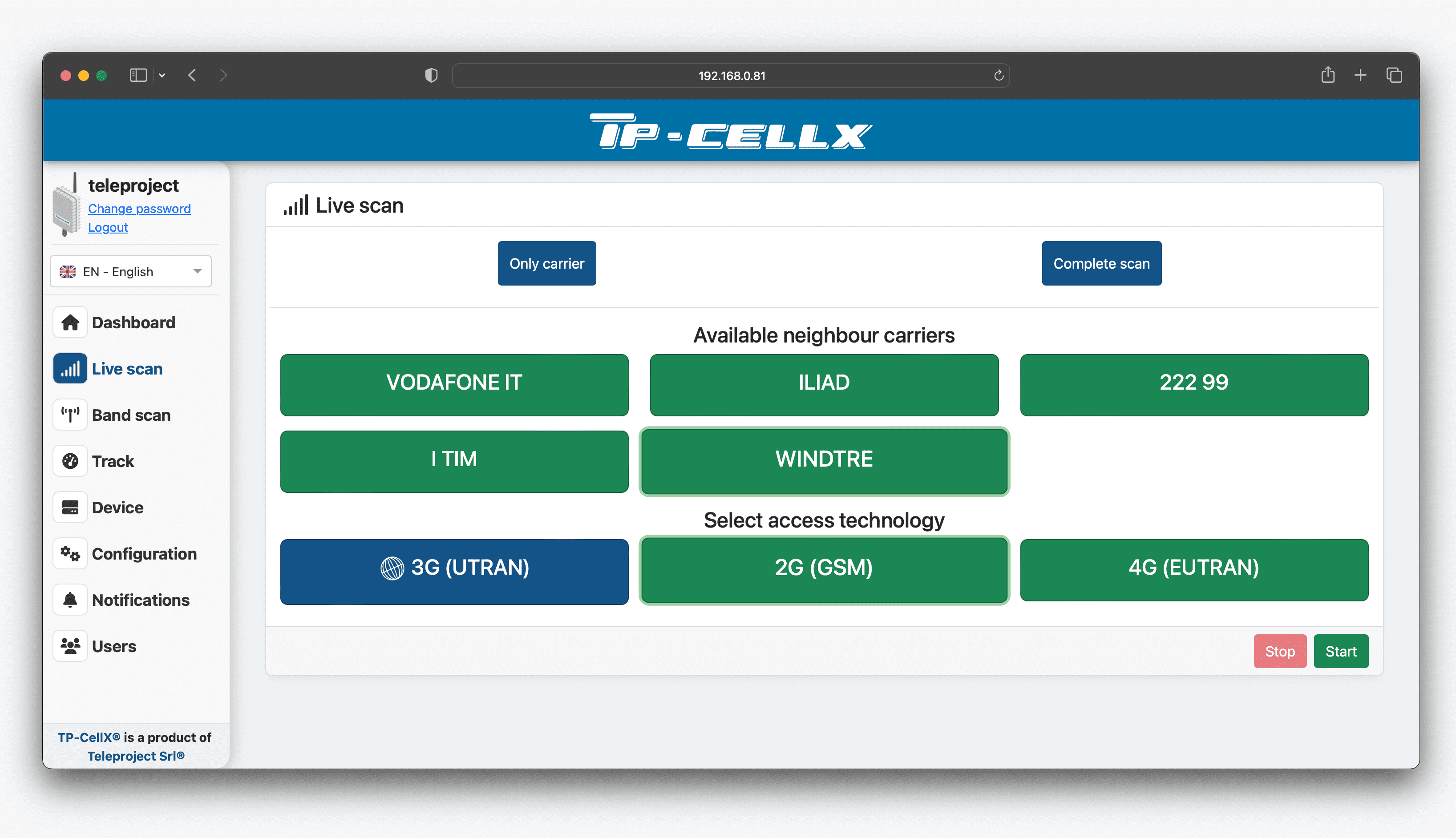

Our platform allows you to monitor the cellular network signal quality in real-time through a web dashboard and multiple notification systems (including email and SNMP).

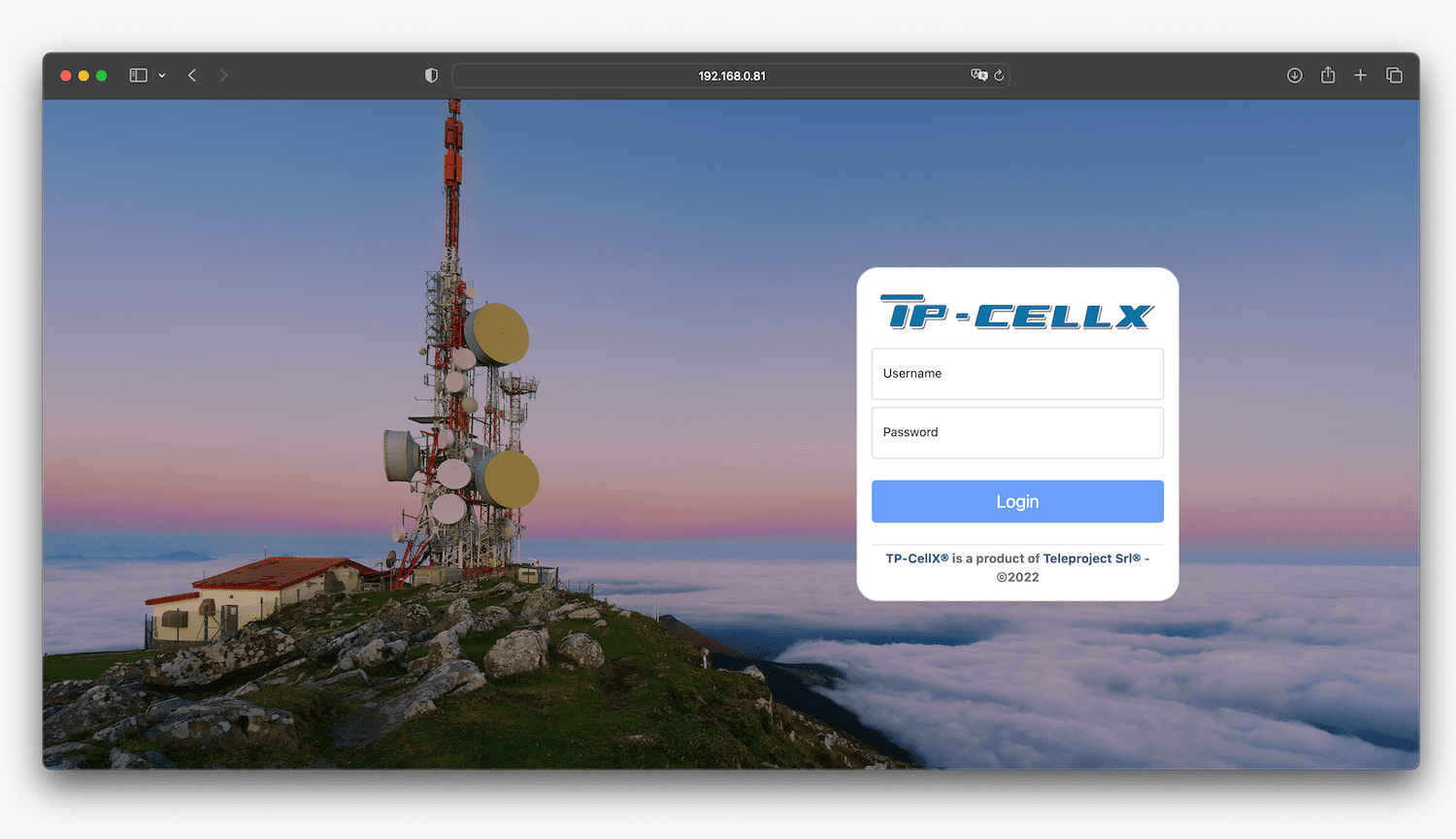

Click the button below and use the following credential to see a demo of the web interface. User: teleproject Password: teleproject
LIVE DEMO

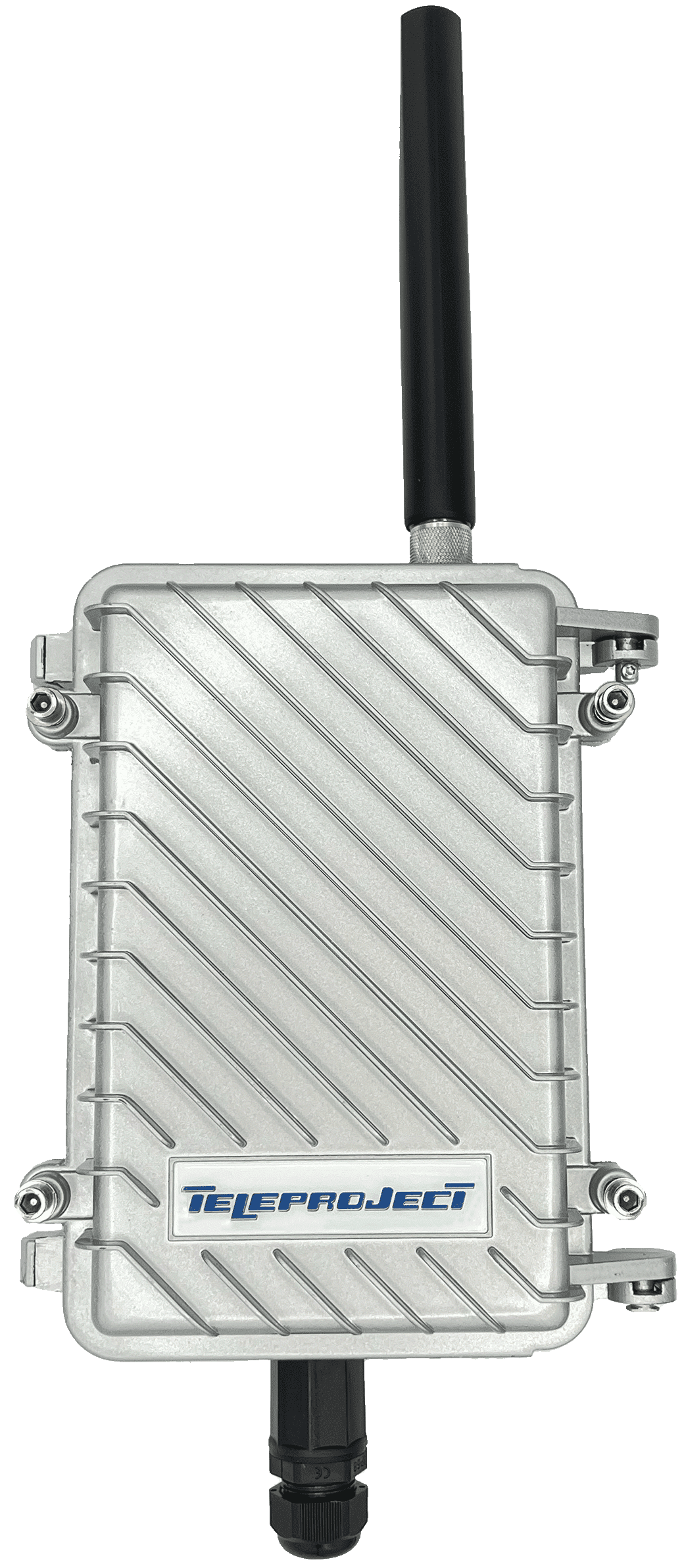

Rain and heavy wind resistant

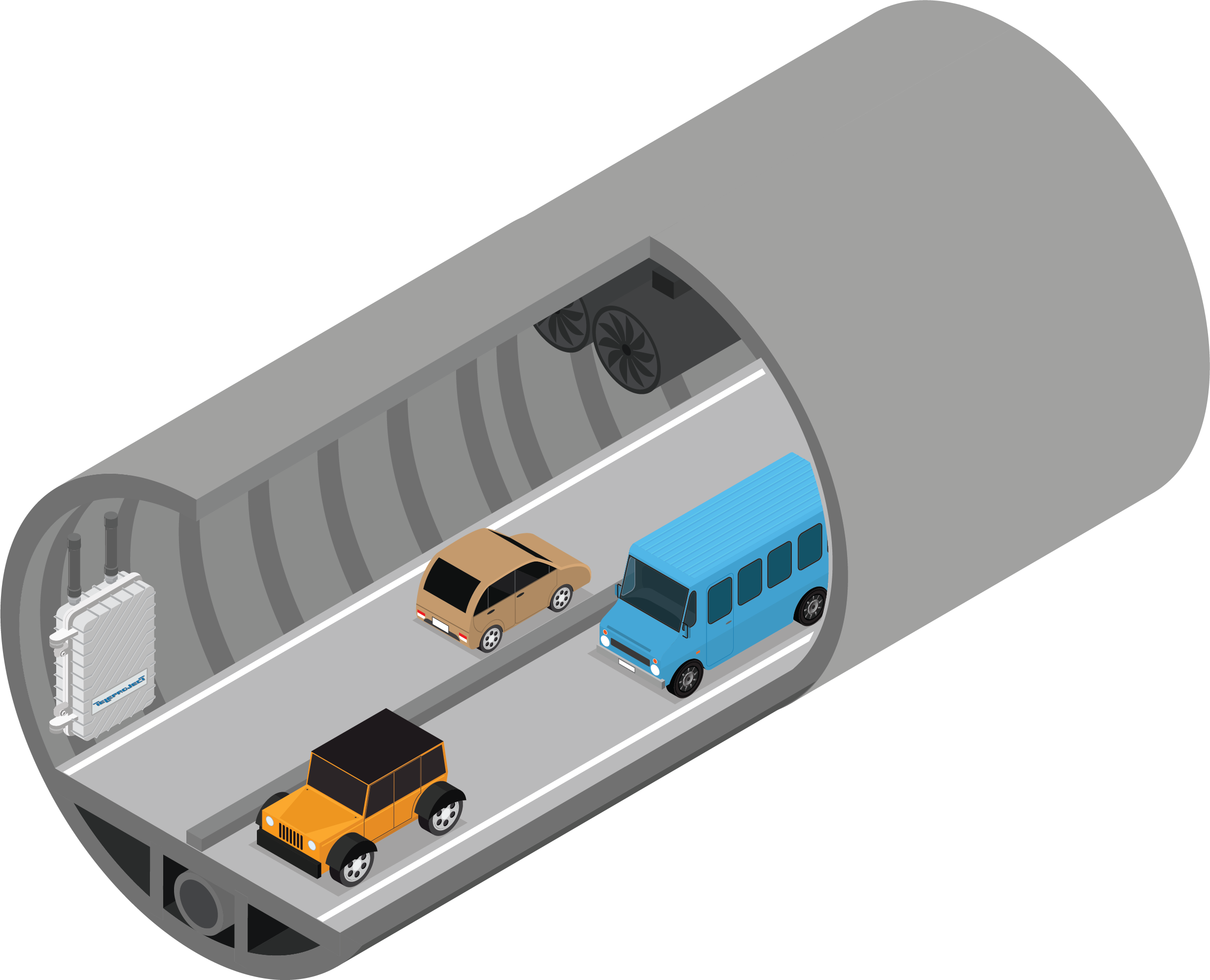

The TP-CELLX is designed to operate continuously in any outdoor environment, including extreme weather conditions, thanks to its IP67 certification. This makes it an essential tool for ensuring reliable and uninterrupted monitoring of critical cellular carriers in emergency situations where 24/7 operation is required.
Other features:
-TP-CELLX is capable of performing test calls between different cellular cells or speed tests (an active SIM card plan is required).
-TP-CELLX is a powerful tool for testing the downlink and uplink signal strength of cellular networks, as well as the audio quality between different cells. This advanced technology helps ensure the reliable and high-quality performance of your cellular communications system.

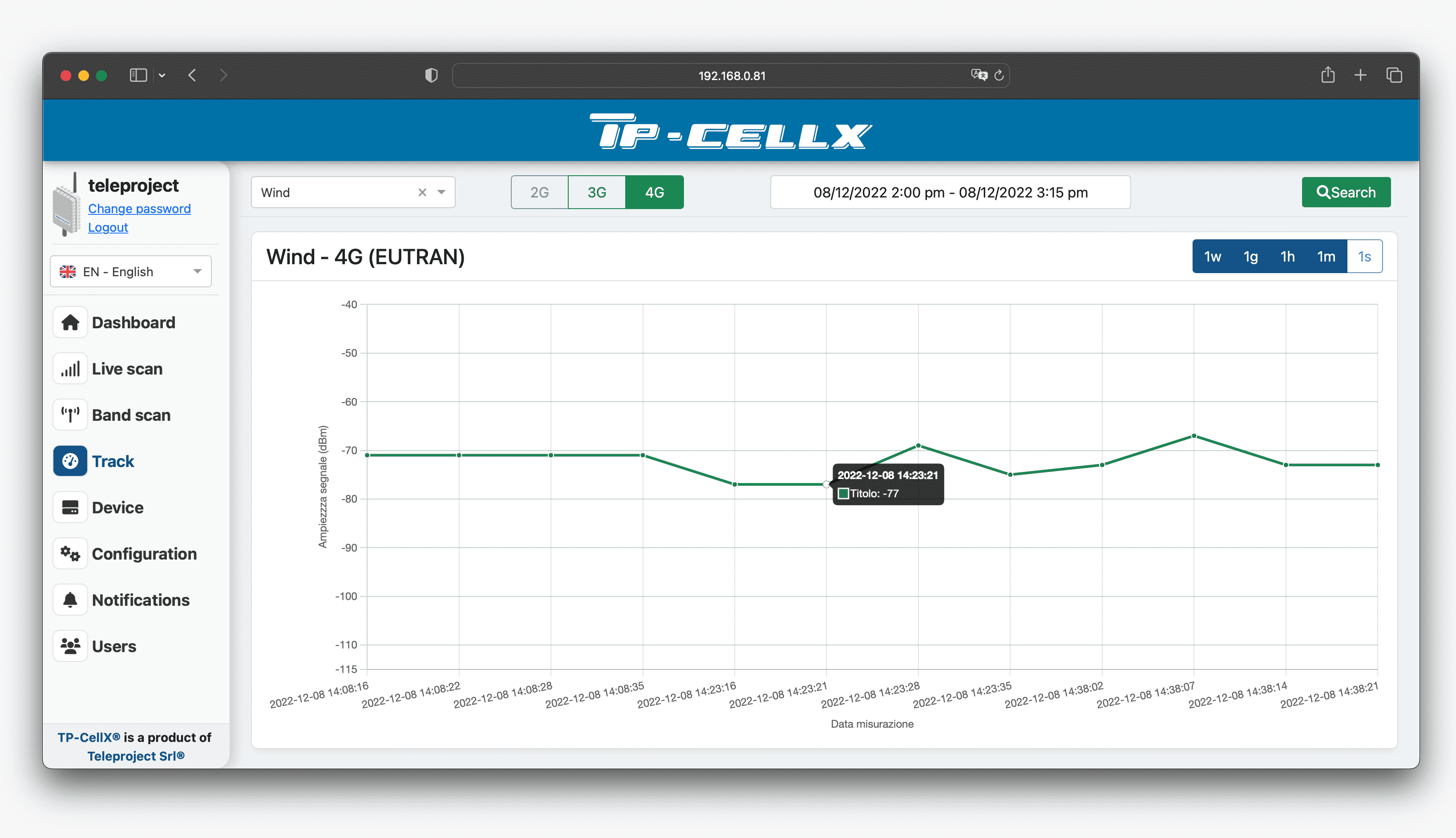

-The History page on the web platform offers a convenient and efficient way to track and analyze cellular signal patterns over a specific period of time. This feature allows you to view signal activity and gain a deeper understanding of the performance and behavior of your cellular network, helping you optimize and improve its performance.

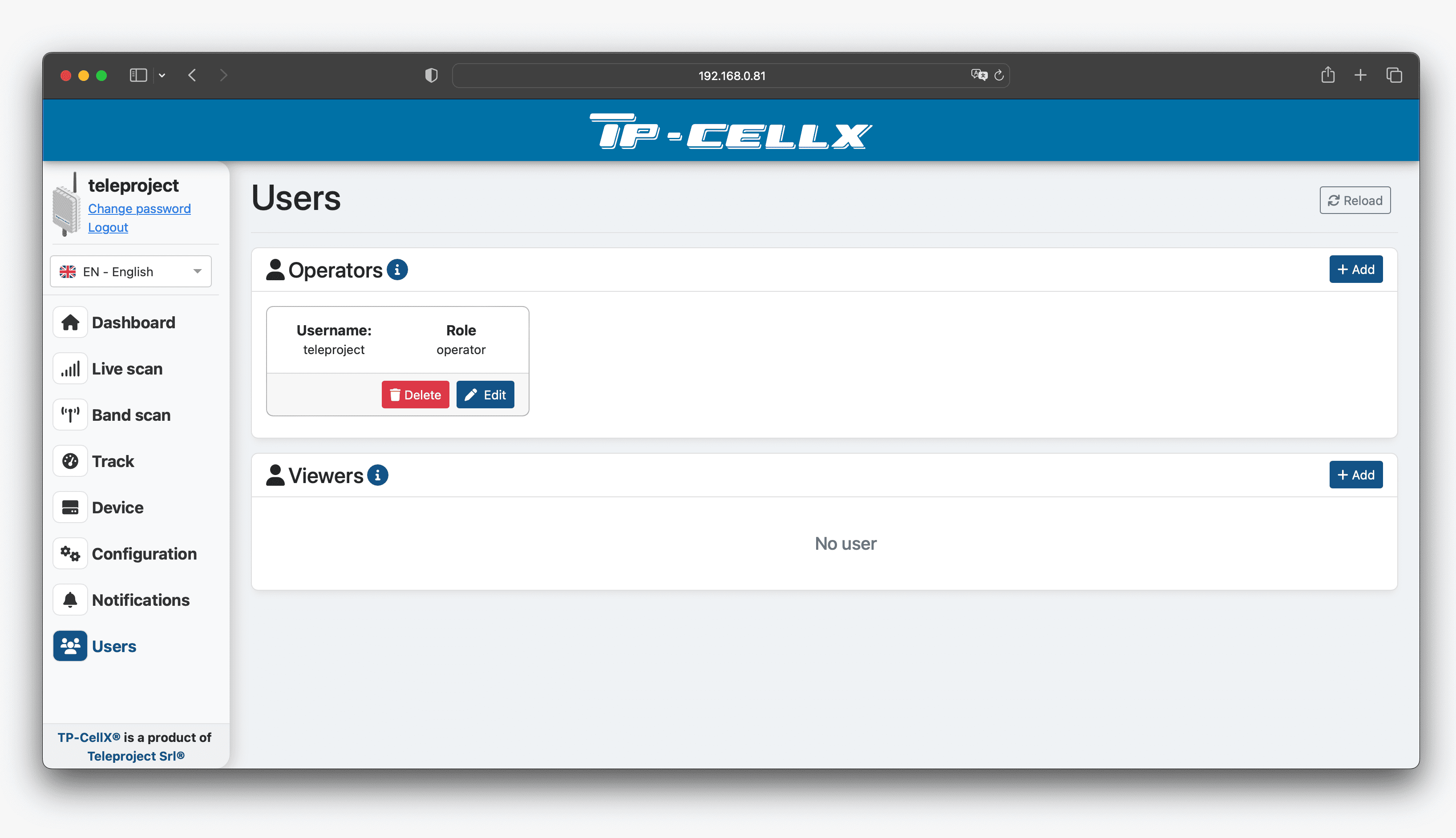

-Users can be created with varying roles and privileges to suit the needs of your organization.
Specifications
TP-CELLX is an outdoor cellular network analyzer able to monitor cellular bands of any operator globally in the following technologies 2G, 3G, 4G and 5G (available from Q3 2023).
Supported bands
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
- LTE-TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
- GSM: B2/B3/B5/B8
Data rate
- LTE-FDD: Max. 150Mbps (DL)/Max. 50Mbps (UL)
- LTE-TDD: Max. 130Mbps (DL)/Max. 30Mbps (UL)
- UMTS (DC-HSDPA): Max. 42Mbps (DL)
- UMTS (HSUPA): Max. 5.76Mbps (UL)
- UMTS (WCDMA): Max. 384kbps (DL)/Max. 384kbps (UL)
- GSM (EDGE): Max. 296kbps (DL)/Max. 236.8kbps (UL)
- GSM (GPRS): Max. 107kbps (DL)/Max. 85.6kbps (UL)
Voice
- Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB
- Echo Arithmetic: Echo Cancellation/Noise Suppression
- Audio: Digital Audio and VoLTE (Voice over LTE)
Power supply
- Input voltage (PoE power supply): 36-56 V
- Operating voltage: 5 V
- Operating current: 10-3000 mA
- Max operating power: 15 Watt
- Protection: Overload and short circuit
- Maximun distance from power supply: 100 Meters
Case and dimensions
- Connectors : 1 x RJ-45 PoE and 2 x N-Type female
- Dimension (without connectors): 235 X 155 X 75 (mm)
- Weight: 2Kg
- Enclosure Seal Operating temperature: -60° C to +230° C
- Heat Trap: +6.5° C under full sun (~100,000 Lux)
- Temperature raise using a 5-10W heat source: +5.5° C
